उत्पाद विवरण:
|
| प्रोडक्ट का नाम: | थ्रेड रेटैक बटन बिट | फ़ायदा: | टिकाऊ, उच्च शक्ति |
|---|---|---|---|
| प्रसंस्करण प्रकार: | फोर्जिंग | उपयोग: | अयस्क खनन |
| सामग्री: | उच्च मैंगनीज स्टील | रंग: | लाल, सोना, पीला |
| व्यास: | 64मिमी/76मिमी/89मिमी | आवेदन: | रॉक ड्रिलिंग, खनन कुआँ, अयस्क ड्रिलिंग |
| प्रमुखता देना: | Retract Thread Button Bit T45,Top Hammer Drill Bits,Rock Drilling Tools with warranty |
||

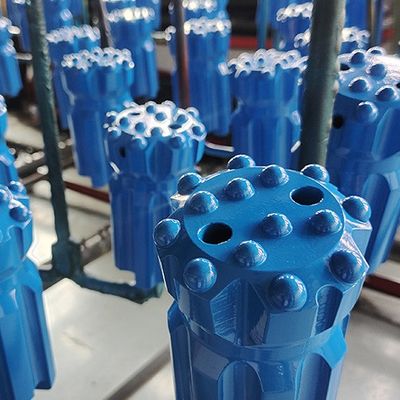

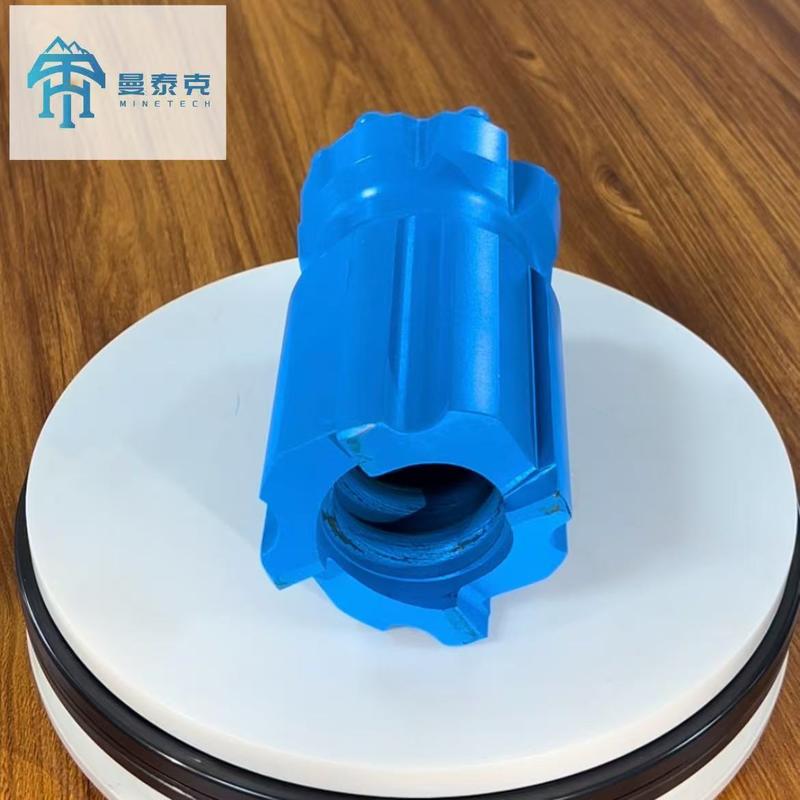

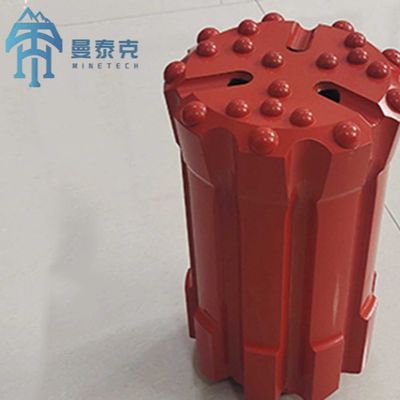

Retract Thread Button Bit T45 Rock Drilling Tools Top Hammer Drill Bits
Product description:
Retract thread button bits in deep hole drilling operations, with high flatness, good stability, can meet the needs of
large aperture use, widely used in underground mining, open-pit mining, hydropower engineering, quarry field and other engineering
construction.
T45 thread button bit
Bit Diameter: 76mm-102mm
Button bit design: Flat face, drop center, Normal and Retractale body.
Tungsten carbide (Buttons): Spherical, Ballistic and Conical.
Competitive advantages:
* This type of bit is well known for its wear resistance on medium-hard to hard rock formations
* Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture
* Widely used drifting and tunneling
* Bit face design is ideal for medium-hard to hard rock formations
* High footage speed and very low percentage of carbide falling off
| Size | Button Quantity | Buckle type | Weight | |
| Front | Gauge | |||
| 64mm | 4*10 | 8*10 | R32 | 2.2KG |
| 76mm | 4*11 | 8*11 | T38 | 3.3KG |
| 89mm | 6*13 | 8*12 | T38 | 4.8KG |
| 102mm | 6*13 | 8*13 | T45 | 6.8KG |
| 115mm | 6*14 | 8*14 | T51 | 9.8KG |
| 127mm | 8*14 | 8*16 | T51 |
12KG |
