उत्पाद विवरण:
|
| प्रोडक्ट का नाम: | भूमिगत घर्षण बोल्ट | प्रमुख शब्द: | घर्षण बोल्ट |
|---|---|---|---|
| मॉडल प्रकार: | 47 मिमी | रंग: | अनुकूलित |
| पैकेट: | लकड़ी का केस | प्रसंस्करण प्रकार: | फोर्जिंग |
| मशीन प्रकार: | रॉक ड्रिल रिग | आवेदन: | बोल्टिंग, ड्रिफ्टिंग • बेंच ड्रिलिंग • प्रोडक्शन ड्रिलिंग |
| पत्तन: | तियानजिन क़िंगदाओ | ||

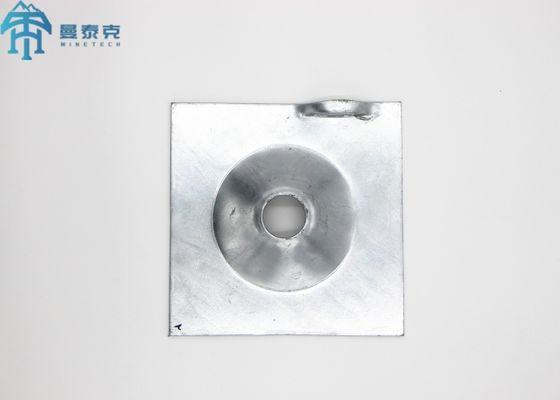

| प्रमुखता देना: | Domed Plates Friction Rock Bolt Stabilizers,Galvanized Friction Rock Bolt Stabilizers,47mm Friction Rock Bolt Stabilizers |
||

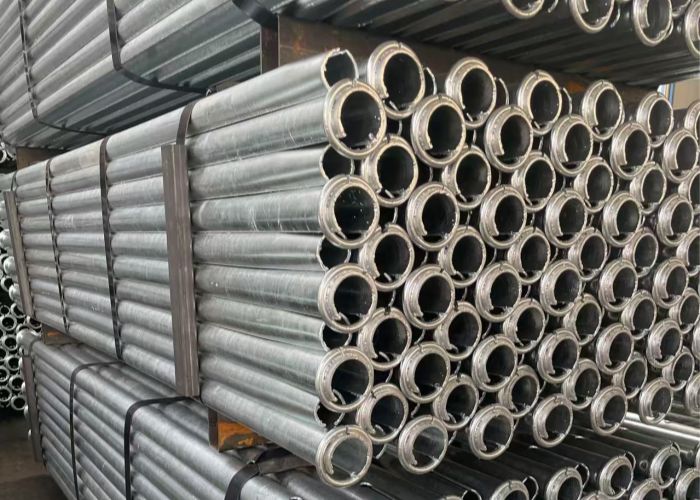

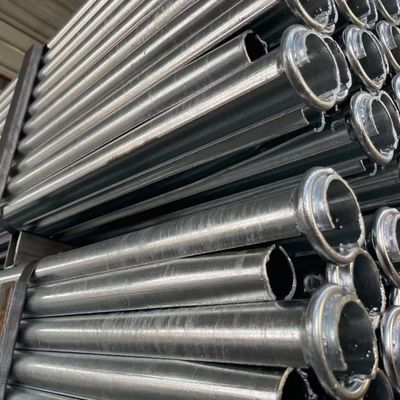

Split set is also know as friction bolt.
It is a rock support method used in underground mining and tunnel construction.The bolt consists of a high strength steel bolt with a ''U'' shape cross section and a longitudinal groove.
To install a Split Set bolt, a hole is made in the rock with a diameter slightly smaller than the bolt’s diameter, and the Split Set is inserted into it. As the bolt is pushed into the rock, the “U” shaped cross-section reduces and adjusts to the shape of the borehole. This expansion creates friction between the Split Set and the surrounding rock along its entire length, providing strong resistance to displacement
| Item no | Dimeter | Steel | Min Yield | Plate size |
| MF33 | 33mm | 2.5mm | 78KN | 150*150*4.0 |
| MF39 | 39mm | 2.5mm | 88KN | 150*150*4.0 |
| MF42 | 42mm | 2.5mm | 95KN | 150*150*4.5 |
| MF47 | 47mm | 3.0mm | 125KN | 150*150*5.0 |
Hebei Minetech Machinery Technology Co, Ltd. is located in Hebei province of China. Our company is a professional production and export tapered and thread rod, chisel and button bit and other mining drilling tools enterprises. With our rich experience for over a decade and with professional engineers and sales team, we focus on providing complete solutions for mining machinery.
